Lens tech data for Konica Minolta AF DT 11-18/4.5-5.6 (D)

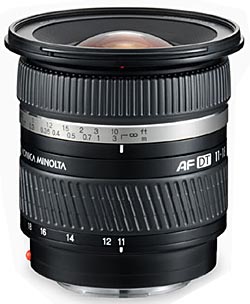

Image: Konica Minolta, used by permission
| General | |
|---|---|
| Name | Konica Minolta AF DT 11-18/4.5-5.6 (D) |
| Mount type | A-mount |
| Release year | 2005 |
| Status | discontinued |
| Manufacturer's order code | 2698-110 |
| Aperture | |
| Minimum aperture | 22–29 |
| Aperture blades | 7, circular |
| Optical construction | |
| Elements/groups | 15/12 |
| Minimum focus distance | 25 cm |
| Maximum magnification | 1:8 (0.125×) |
| Focus design | internal |
| Features | |
| AF drive | in-body motor |
| D function | yes |
| Lens buttons | – |
| Focus range limiter | – |
| Tripod mount | – |
| Other features | distance scale |
| Dimensions and weight | |
| Minimum length [mm] | 80.5 |
| Maximum length [mm] | 84.5 |
| Maximum diameter [mm] | 83.0 |
| Filter diameter [mm]/type | 77/front |
| Weight [g] nominal/net/gross | 350/362/417 |
| Hood | |
| Hood mount | bayonet |
| Hood shape | flower |
| Hood part number | 6695-810 |
| Movements | |
| Filter rotates when focusing | no |
| Filter rotates when zooming | no |
| Length changes when focusing | no |
| Length changes when zooming | yes |
| Focus ring rotates in AF mode | yes |
| Construction and accessories | |
| Color | black |
| Weather sealing | no |
| Zoom ring position | rear |
| Mount material | steel |
| Standard accessories | front cap, rear cap, hood |
| Optional accessories | pouch LS-2500 |
| Misc | |
| Lens ID | 41 |
| Comments | – |
| Reviews & links | Kurt Munger (full review) |
| Related lenses | |
| Part of camera kit | – |
