Camera tech data for Sony ILME-FX30

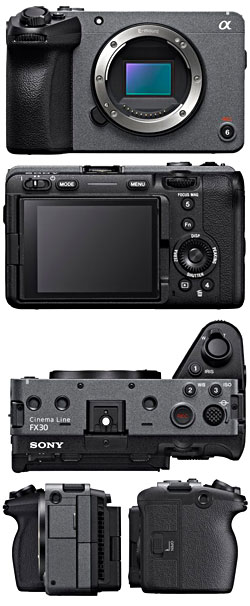

Image: Sony, used by permission
General | |
---|---|
Name | Sony ILME-FX30 |
Mount type | E-mount |
Supported lenses | E, FE, A-mount (via LA-EAx) |
Release year | 2022 |
Status | current |
Digital parameters | |
Output resolution [pixels] | 6192×4128, 4384×2920, 3104×2064 |
Output resolution (16:9) [pixels] | 6192×3482, 4384×2466, 3104×1746 ? |
Output resolution (4:3) [pixels] | 5504×4128, 3894×2920, 2728×2064 ? |
Output resolution (1:1) [pixels] | 4128×4128, 2920×2920, 2064×2064 |
Output resolution (panorama) [pixels] | – |
Output resolution (3D panorama) [pixels] | – |
Effective output pixels | 25.6 M |
Sensor type | CMOS, Bayer pattern, back-illuminated, 14-bit ADC |
Sensor size [mm] (crop factor) | 23.3×15.5 (1.5×) |
ISO range | auto (100–6400; conf.), 50–102400 (1/3 stops) |
Color and post-processing | |
Color spaces | sRGB, Adobe RGB |
Image parameters | contrast, saturation, sharpness (-3 – +3) |
Creative styles | – |
Creative look | ST, PT, NT, VV, VV2, FL, IN, SH, BW, SE, custom (1-6) |
Picture effects | – |
Picture parameters | black level, gamma (14 options), black gamma, knee, color mode, color level, color phase, color depth, detail |
Gamma settings | Movie, Still, Cine1, Cine2, Cine3, Cine4, ITU709, ITU709 (800%), S-Log3, HLG, HLG1, HLG2, HLG3, S-Cinetone |
Picture profiles | 8 |
Soft skin effect | 3 levels, off |
White balance | auto, daylight, shade, cloudy, tungsten, fluorescent (4 types), underwater, direct entry, custom (3 registers) |
Color temperature range [K] | 2500–9900 |
Color temperature increments [K] | 100 |
Color compensation index [steps] | ± 7 (A/B), ± 7 (G/M) |
White-balance bracketing [pictures per shot] (steps [mired]) | 3 (10; 20) |
Noise reduction | long exp. (>1s), high-ISO (2 levels; off) |
D-range optimizer | advanced auto, manual (5 levels) |
DRO bracketing [pictures per shot] (levels) | 3 (2 levels) |
Auto HDR | auto, manual (1–6 EV) |
Lens compensation | vignetting, chromatic aberration, distortion |
Movie recording | |
Movie resolutions [size/fps] | 4096×2160p24, 3840×2160p120, 3840×2160p100, 3840×2160p60, 3840×2160p50, 3840×2160p30, 3840×2160p25, 3840×2160p24, 1920×1080p120, 1920×1080p100, 1920×1080p60, 1920×1080p50, 1920×1080p30, 1920×1080p25, 1920×1080p24, 1280×720p240, 1280×720p200 |
Movie ISO range | 100–32000 |
Shutter speed (movie) [s] | 1/4 – 1/8000 |
Movie formats | XAVC-HS, XAVC-S, XAVC-S-I |
Audio formats | MPEG4 AAC-LC, Linear PCM |
Movie length | unlimited |
Microphone | built-in (stereo), 3.5 mm plug (stereo), Multi Interface (digital stereo), level control |
Audio monitoring | 3.5 mm (stereo) |
Movie features | auto slow shutter, time code, user bit, picture profiles, creative look, HDMI info off, clean HDMI out, rec control, dual video rec, marker settings, gamma display assist |
Auto-focus | |
AF sensors | 425 areas, 759 phase detect points |
AF range [EV] | −3 – 20 |
AF modes | AF-A, AF-S, AF-C, DMF, Tracking AF |
AF assist light | yes |
AF adjustment [no. of lenses] | 30 |
AF bracketing [step width] ([number of shots]) | - (-) |
Features | |
Eye-start | yes |
Sensor-based image stabilisation | yes |
Remote control via USB/WiFi | yes |
Other features | all-metal construction, intelligent preview, MF peaking, interval timer, on-screen help, Anti-Dust, BRAVIA Sync, face recognition, auto object framing, smile shutter, speaker, level gauge, USB charging, USB power supply, WiFi support, NFC, Bluetooth |
Metering | |
Metering modes | 1200 segments, center-weighted, spot |
Metering range [EV] (with spot) | −3 – 20 (−3 – 20) |
Auto Exposure Lock button | yes |
Exposure modes | iAuto, P with shift, A, S, M with shift |
Subject programs | portrait, landscape, closeup, sport, night view, night portrait, hand-held night shot, sunset, anti motion blur, 2 preset modes |
Exposure compensation [stops] (steps [stops]) | ± 5 (1/2), ± 5 (1/3) |
Zebra | yes |
Flash | |
Flash shoe type | Multi Interface (digital mic.) |
Accessory shoe cap | FA-SHC1M |
Flash modes | normal, red-eye reduction, rear sync, slow sync |
Flash metering | Pre-Flash TTL |
Requires D flash unit | yes |
Flash guide number [m]/ coverage [mm] | -/- |
X-Sync speed [s] | 1/250 |
High Speed Sync | yes |
Wireless flash | yes (only w/ separate controller) |
Wireless x-sync speed [s] | 1/250 |
Wireless HSS | yes |
Ratio flash control | yes |
Flash exposure compensation [stops] (steps [stops]) | ± 3 (1/2), ± 3 (1/3) |
Studio flash socket | no |
Flash Exposure Level lock | yes |
Flash Control from body | yes |
Viewfinder | |
Viewfinder type | – |
Viewfinder resolution [pixels] | – |
Viewfinder coverage | – |
Viewfinder magnification | – |
Eye relief [mm]/ from frame [mm] | – |
Diopter adjustment [diopters] | – |
Eyepiece cup | – |
Viewfinder accessory compatible | – |
Live View | main sensor |
Live View zoom | 1×, 1.3×, 1.5×, 2×, 4×, 5.2×, 6.1×, 8× |
Display | |
Display technology, size [mm/inches], resolution [dots] | TFT, 3″, 2359296 |
Display mount | tilt up/down, swivel |
Histogram display | luminance, RGB |
Automatic brightness | no |
Touch screen | yes |
Video output interfaces | HDMI-A (1080p/1080i/4K) |
Display accessories (opt.) | screen protector PCK-LG1 |
Shooting | |
Frame rate [fps] | 10, 8, 6, 3 |
Frame rate with AF [fps] | 10.0 |
Shutter speed (still) [s] | 30 – 1/8000, B |
Shutter type | mech., elec. f. c., elec. |
Self-timer [s] | 10, 5, 2 |
Continuous self-timer [shots] | 5, 3 |
Bracketing frames (stops) | 3, 5, 9 (1/3, 1/2, 2/3), 3 (1, 2, 3) |
Remote release socket | Multi Terminal |
Wireless remote release | RMT-DSLR1, RMT-DSLR2, RMT-VP1, RMT-P1BT, GP-VPT2BT |
Release priority | no |
Depth of field preview | yes |
Aperture can be changed during depth of field preview | yes |
Silent depth of field preview | yes |
Storage | |
Storage media (number of slots) | SD, SDHC, SDXC, Eye-Fi, CFexpress Type A (2) |
Remote storage via USB | yes |
Remote storage via FTP | yes |
File system formats | FAT12, FAT16, FAT32, exFAT |
File formats | ARW 4.0, JPEG w/ EXIF 2.32, HEIF (MPEG-A MIAF) |
Power | |
Batteries | 1× NP-FZ100 |
Vertical grip | – |
External power supply | battery pack NPA-MQZ1K |
Construction and accessories | |
Weather sealing | yes |
Mount material | steel |
Weight [g] | 562 |
Standard accessories | body cap, accessory shoe cap FA-SHC1M, USB cable, battery NP-FZ100, charger AC-UUD12, software |
Other optional accessories | lens adapters LA-EAx, microphone ECM-CG50, microphone ECM-ALST1, microphone ECM-XYST1M |
Misc | |
Other interfaces | USB 3.2 (USB-C), USB 2.0 (High Speed; Micro-B; Multi Terminal) |
USB modes | mass storage, remote control/storage, MTP |
Printing | Exif Print, Print Image Matching Ⅲ |
Latest firmware version (release date) | 5.00 (09/2024) |
Comments | active cooling, 5× ¼″ threads, anamorphic lens desqueeze |
Reviews & links | Sony (press release) |
Related cameras | – |
Kits | – |
