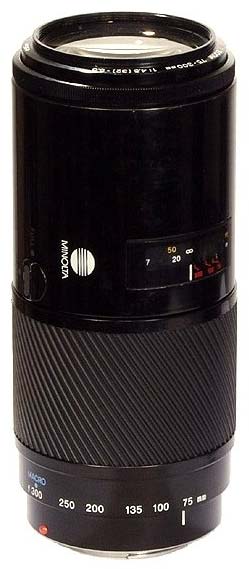

Lens tech data for Minolta AF 75-300/4.5-5.6
| General | |
|---|---|
| Name | Minolta AF 75-300/4.5-5.6 |
| Mount type | A-mount |
| Release year | 1986 |
| Status | discontinued |
| Manufacturer's order code | 2561-100 |
| Aperture | |
| Minimum aperture | 32–38 |
| Aperture blades | 9 |
| Optical construction | |
| Elements/groups | 13/11 |
| Minimum focus distance | 150 cm |
| Maximum magnification | 1:3.84 (0.26×) |
| Focus design | front |
| Features | |
| AF drive | in-body motor |
| D function | no |
| Lens buttons | – |
| Focus range limiter | mechanical, dual range |
| Tripod mount | – |
| Other features | distance scale |
| Dimensions and weight | |
| Minimum length [mm] | 163.5 |
| Maximum length [mm] | 209.0 |
| Maximum diameter [mm] | 72.5 |
| Filter diameter [mm]/type | 55/front |
| Weight [g] nominal/net/gross | 865/866/910 |
| Hood | |
| Hood mount | clip-on |
| Hood shape | round |
| Hood part number | 6561-810 |
| Movements | |
| Filter rotates when focusing | yes |
| Filter rotates when zooming | no |
| Length changes when focusing | yes |
| Length changes when zooming | yes |
| Focus ring rotates in AF mode | yes |
| Construction and accessories | |
| Color | black |
| Weather sealing | no |
| Zoom ring position | rear |
| Mount material | steel |
| Standard accessories | front cap, rear cap, hood |
| Optional accessories | case LH-1037 |
| Misc | |
| Lens ID | 25611 |
| Comments | – |
| Reviews & links | – |
| Related lenses | – |
| Part of camera kit | – |
