Lens tech data for Minolta AF 500/8 Reflex

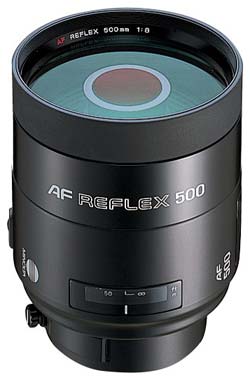

Image: Minolta, used by permission
| General | |
|---|---|
| Name | Minolta AF 500/8 Reflex |
| Mount type | A-mount |
| Release year | 1991 |
| Status | discontinued |
| Manufacturer's order code | 2572-118 |
| Aperture | |
| Minimum aperture | 8 |
| Aperture blades | – |
| Optical construction | |
| Elements/groups | 7/5 |
| Minimum focus distance | 400 cm |
| Maximum magnification | 1:7.69 (0.13×) |
| Focus design | front |
| Features | |
| AF drive | in-body motor |
| D function | no |
| Lens buttons | 1 |
| Focus range limiter | – |
| Tripod mount | – |
| Other features | distance scale |
| Dimensions and weight | |
| Minimum length [mm] | 118.0 |
| Maximum length [mm] | 122.0 |
| Maximum diameter [mm] | 89.0 |
| Filter diameter [mm]/type | 28/rear, 82/front |
| Weight [g] nominal/net/gross | 665/705/775 |
| Hood | |
| Hood mount | screw-on |
| Hood shape | round |
| Hood part number | 6572-810 |
| Movements | |
| Filter rotates when focusing | no |
| Length changes when focusing | yes |
| Focus ring rotates in AF mode | yes |
| Construction and accessories | |
| Color | black |
| Weather sealing | no |
| Mount material | steel |
| Standard accessories | ND 4× rear filter, front cap, rear cap, hood, case LH-1076 |
| Optional accessories | – |
| Misc | |
| Lens ID | 25721 |
| Comments | front filter rotates when focusing |
| Reviews & links | – |
| Related lenses | |
| Part of camera kit | – |
