Lens tech data for Minolta AF 70-210/4.5-5.6 Ⅱ

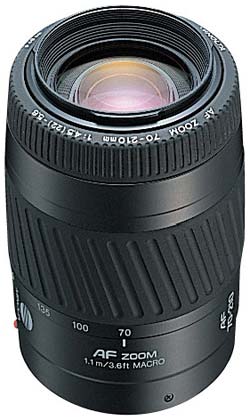

Image: Minolta, used by permission
| General | |
|---|---|
| Name | Minolta AF 70-210/4.5-5.6 Ⅱ |
| Mount type | A-mount |
| Release year | 1999 |
| Status | discontinued |
| Manufacturer's order code | 2669-110, 2669-160 |
| Aperture | |
| Minimum aperture | 22–27 |
| Aperture blades | 7 |
| Optical construction | |
| Elements/groups | 10/10 |
| Minimum focus distance | 110 cm |
| Maximum magnification | 1:3.85 (0.26×) |
| Focus design | front |
| Features | |
| AF drive | in-body motor |
| D function | no |
| Lens buttons | – |
| Focus range limiter | – |
| Tripod mount | – |
| Other features | – |
| Dimensions and weight | |
| Minimum length [mm] | 93.0 |
| Maximum length [mm] | unknown |
| Maximum diameter [mm] | 69.0 |
| Filter diameter [mm]/type | 49/front |
| Weight [g] nominal/net/gross | 320/unknown/unknown |
| Hood | |
| Hood mount | bayonet |
| Hood shape | round |
| Hood part number | 6634-810 |
| Movements | |
| Filter rotates when focusing | yes |
| Filter rotates when zooming | unknown |
| Length changes when focusing | unknown |
| Length changes when zooming | unknown |
| Focus ring rotates in AF mode | yes |
| Construction and accessories | |
| Color | black or silver |
| Weather sealing | no |
| Zoom ring position | rear |
| Mount material | polycarbonate |
| Standard accessories | front cap, rear cap, hood |
| Optional accessories | case LH-1044, pouch LS-2300 |
| Misc | |
| Lens ID | 8 |
| Comments | same design as older version |
| Reviews & links | – |
| Related lenses | |
| Part of camera kit | – |
