Lens tech data for Sony FE 12-24/2.8 GM

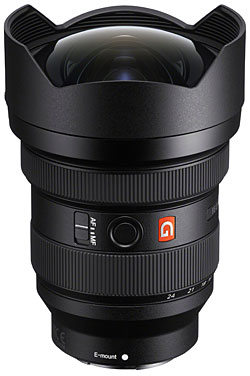

Image: Sony, used by permission
| General | |
|---|---|
| Name | Sony FE 12-24/2.8 GM |
| Mount type | E-mount |
| Release year | 2020 |
| Status | current |
| Manufacturer's order code | SEL-1224GM |
| Aperture | |
| Minimum aperture | 22 |
| Aperture blades | 9, circular |
| Optical construction | |
| Elements/groups | 17/14 |
| Minimum focus distance | 28 cm |
| Maximum magnification | 1:7 (0.14×) |
| Focus design | floating |
| Features | |
| AF drive | XD linear |
| D function | no |
| Lens buttons | 1 |
| Focus range limiter | – |
| Tripod mount | – |
| Other features | AF/MF switch, breathing compensation |
| Dimensions and weight | |
| Minimum length [mm] | 137.0 |
| Maximum length [mm] | 137.0 |
| Maximum diameter [mm] | 97.6 |
| Filter diameter [mm]/type | rear |
| Weight [g] nominal/net/gross | 847/unknown/unknown |
| Hood | |
| Hood mount | integrated |
| Hood shape | flower |
| Hood part number | – |
| Movements | |
| Filter rotates when focusing | no |
| Filter rotates when zooming | no |
| Length changes when focusing | no |
| Length changes when zooming | no |
| Focus ring rotates in AF mode | no |
| Construction and accessories | |
| Color | black |
| Weather sealing | yes |
| Zoom ring position | rear |
| Mount material | steel |
| Standard accessories | front cap, rear cap, pouch |
| Optional accessories | – |
| Misc | |
| Lens ID | unknown |
| Comments | – |
| Reviews & links | Sony Europe (press release) |
| Related lenses | – |
| Part of camera kit | – |
