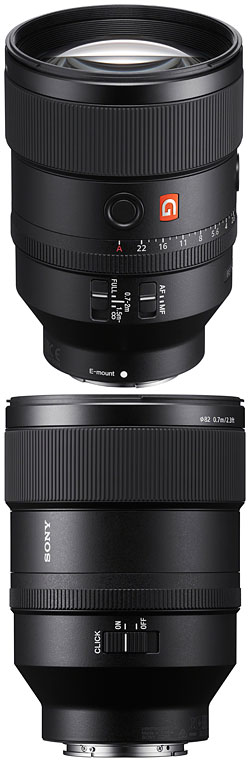

Lens tech data for Sony FE 135/1.8 GM
| General | |
|---|---|
| Name | Sony FE 135/1.8 GM |
| Mount type | E-mount |
| Release year | 2019 |
| Status | current |
| Manufacturer's order code | SEL-135F18GM |
| Aperture | |
| Minimum aperture | 22 |
| Aperture blades | 11, circular |
| Optical construction | |
| Elements/groups | 13/10 |
| Minimum focus distance | 70 cm |
| Maximum magnification | 1:4 (0.25×) |
| Focus design | internal, floating |
| Features | |
| AF drive | XD linear, DMF compatible |
| D function | no |
| Lens buttons | 2 |
| Focus range limiter | electronic, dual range |
| Tripod mount | – |
| Other features | manual aperture option (w/ click switch), AF/MF switch, breathing compensation |
| Dimensions and weight | |
| Minimum length [mm] | 127.0 |
| Maximum length [mm] | 127.0 |
| Maximum diameter [mm] | 89.5 |
| Filter diameter [mm]/type | 82/front |
| Weight [g] nominal/net/gross | 950/unknown/unknown |
| Hood | |
| Hood mount | bayonet |
| Hood shape | round |
| Hood part number | ALC-SH156 |
| Movements | |
| Filter rotates when focusing | no |
| Length changes when focusing | no |
| Focus ring rotates in AF mode | no |
| Construction and accessories | |
| Color | black |
| Weather sealing | yes |
| Mount material | steel |
| Standard accessories | front cap, rear cap, hood, pouch |
| Optional accessories | – |
| Misc | |
| Lens ID | unknown |
| Comments | Latest firmware: 02 (01/2020) |
| Reviews & links | John Sison (video) |
| Related lenses | – |
| Part of camera kit | – |
