Lens tech data for Carl Zeiss Vario-Tessar T* E 16-70/4 ZA OSS

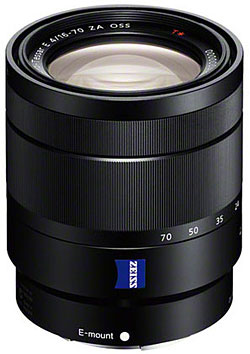

Image: Sony, used by permission | |
| General | |
|---|---|
| Name | Carl Zeiss Vario-Tessar T* E 16-70/4 ZA OSS |
| Mount type | E-mount |
| Release year | 2013 |
| Status | current |
| Manufacturer's order code | SEL-1670Z |
| Aperture | |
| Minimum aperture | 22 |
| Aperture blades | 7, circular |
| Optical construction | |
| Elements/groups | 16/12 |
| Minimum focus distance | 35 cm |
| Maximum magnification | 1:4.35 (0.23×) |
| Focus design | internal |
| Features | |
| AF drive | SSM (linear) |
| D function | no |
| Lens buttons | – |
| Focus range limiter | – |
| Tripod mount | – |
| Other features | optical image stabilizer |
| Dimensions and weight | |
| Minimum length [mm] | 75.0 |
| Maximum length [mm] | 114.0 |
| Maximum diameter [mm] | 66.6 |
| Filter diameter [mm]/type | 55/front |
| Weight [g] nominal/net/gross | 308/308/350 |
| Hood | |
| Hood mount | bayonet |
| Hood shape | flower |
| Hood part number | ALC-SH127 |
| Movements | |
| Filter rotates when focusing | no |
| Filter rotates when zooming | no |
| Length changes when focusing | no |
| Length changes when zooming | yes |
| Focus ring rotates in AF mode | no |
| Construction and accessories | |
| Color | black |
| Weather sealing | no |
| Zoom ring position | rear |
| Mount material | steel |
| Standard accessories | front cap, rear cap, hood, pouch |
| Optional accessories | – |
| Misc | |
| Lens ID | 32791 |
| Comments | – |
| Reviews & links | Chris Gampat on The Phoblographer (full review), Gary Wolstenholme on ePHOTOzine (full review), Jason Hermann on SonyAlphaLab (full review), John Sison (video), Jordan Steele on Admiring Light (full review), Kevin Carter on DxOMark (full review), Klaus Schroiff on photozone.de (full review), Kurt Munger (full review), William Brawley on SLRGear.com (full review) |
| Related lenses | – |
| Part of camera kit | – |
