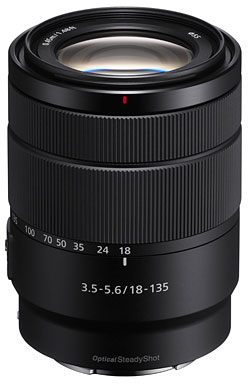

Lens tech data for Sony E 18-135/3.5-5.6 OSS
| General | |
|---|---|
| Name | Sony E 18-135/3.5-5.6 OSS |
| Mount type | E-mount |
| Release year | 2018 |
| Status | current |
| Manufacturer's order code | SEL-18135 |
| Aperture | |
| Minimum aperture | 22-36 |
| Aperture blades | 7, circular |
| Optical construction | |
| Elements/groups | 16/12 |
| Minimum focus distance | 45 cm |
| Maximum magnification | 1:3.4 (0.29×) |
| Focus design | internal |
| Features | |
| AF drive | linear, DMF compatible |
| D function | no |
| Lens buttons | – |
| Focus range limiter | – |
| Tripod mount | – |
| Other features | optical image stabilizer, AF/MF switch |
| Dimensions and weight | |
| Minimum length [mm] | 88.0 |
| Maximum length [mm] | 112.0 |
| Maximum diameter [mm] | 67.2 |
| Filter diameter [mm]/type | 55/front |
| Weight [g] nominal/net/gross | 325/320/362 |
| Hood | |
| Hood mount | bayonet |
| Hood shape | flower |
| Hood part number | ALC-SH153 |
| Movements | |
| Filter rotates when focusing | no |
| Filter rotates when zooming | no |
| Length changes when focusing | no |
| Length changes when zooming | yes |
| Focus ring rotates in AF mode | no |
| Construction and accessories | |
| Color | black |
| Weather sealing | no |
| Zoom ring position | rear |
| Mount material | steel |
| Standard accessories | front cap, rear cap, hood |
| Optional accessories | – |
| Misc | |
| Lens ID | 32849 |
| Comments | – |
| Reviews & links | Gordon Laing at Camera Labs (full review), John Sison (video) |
| Related lenses | – |
| Part of camera kit | |
