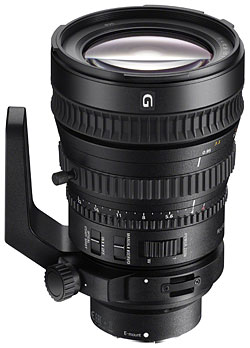

Lens tech data for Sony FE PZ 28-135/4 G OSS
| General | |
|---|---|
| Name | Sony FE PZ 28-135/4 G OSS |
| Mount type | E-mount |
| Release year | 2014 |
| Status | current |
| Manufacturer's order code | SEL-P28135G |
| Aperture | |
| Minimum aperture | 22 |
| Aperture blades | 9, circular |
| Optical construction | |
| Elements/groups | 18/12 |
| Minimum focus distance | 40 cm – 95 cm |
| Maximum magnification | 1:6.7 (0.15×) |
| Focus design | internal, floating |
| Features | |
| AF drive | SSM (ring), DMF compatible |
| D function | no |
| Lens buttons | – |
| Focus range limiter | – |
| Tripod mount | removable |
| Other features | manual aperture option (w/ click switch), optical image stabilizer, AF/MF switch, motorized zoom, distance scale, strap eyelets, breathing compensation |
| Dimensions and weight | |
| Minimum length [mm] | 162.5 |
| Maximum length [mm] | 162.5 |
| Maximum diameter [mm] | 105.0 |
| Filter diameter [mm]/type | 95/front |
| Weight [g] nominal/net/gross | 1215/unknown/unknown |
| Hood | |
| Hood mount | bayonet |
| Hood shape | rectangular |
| Hood part number | ALC-SH135 |
| Movements | |
| Filter rotates when focusing | no |
| Filter rotates when zooming | no |
| Length changes when focusing | no |
| Length changes when zooming | no |
| Focus ring rotates in AF mode | no |
| Construction and accessories | |
| Color | black |
| Weather sealing | yes |
| Zoom ring position | front |
| Mount material | steel |
| Standard accessories | front cap, rear cap, hood, pouch, strap |
| Optional accessories | – |
| Misc | |
| Lens ID | 32817 |
| Comments | – |
| Reviews & links | Jack Baker on Photography Blog (full review), Matt Allard on NewsShooter.com (full review), Michael Reichmann at Luminous Landscape (full review), Sebastian Wöber at Cinema5D (full review) |
| Related lenses | – |
| Part of camera kit | |
